Washer-Disinfectors

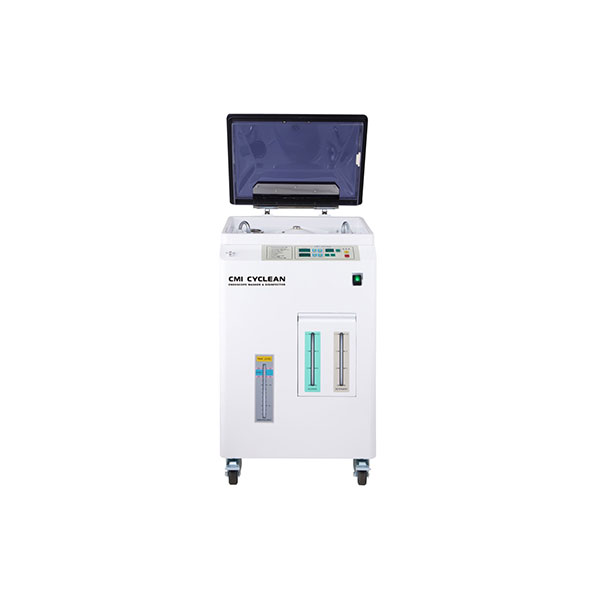

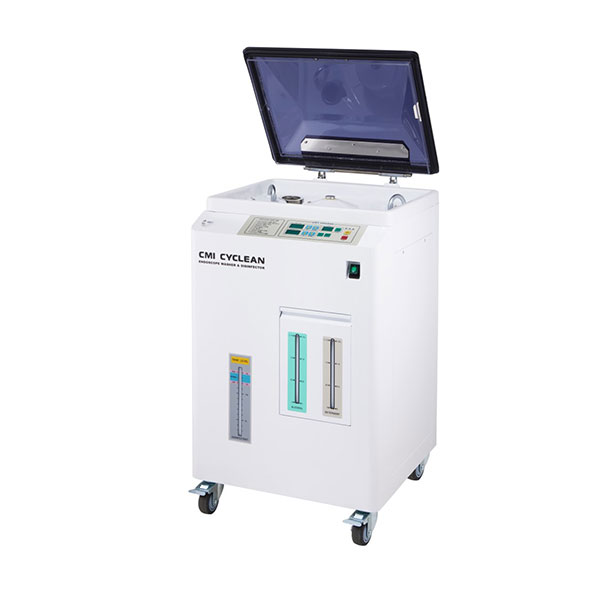

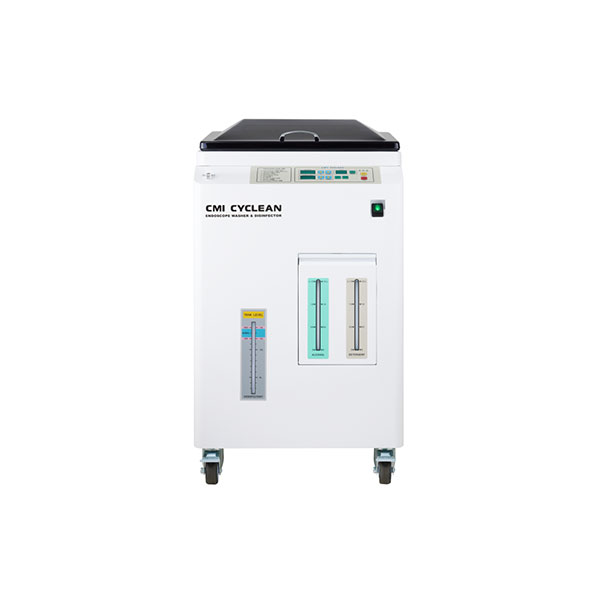

EEndoscope washer & Disinfector: CYCLEAN
Features
- – Single scope cleaning and disinfection
- – Leakage test

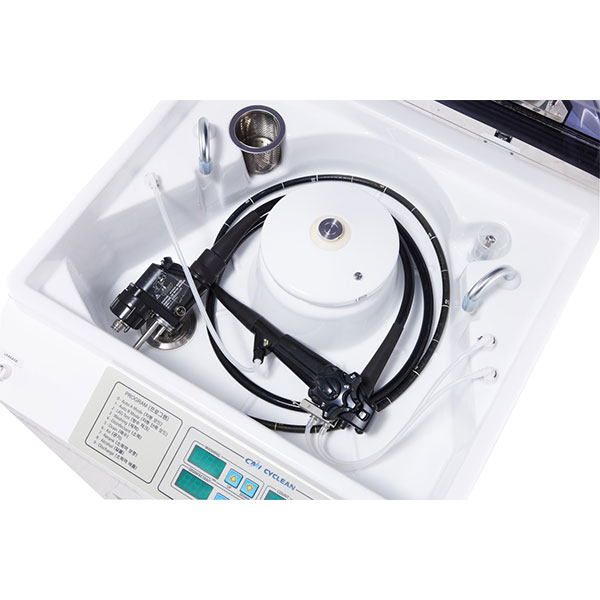

- – Multi-channel jetting system rotated in 360°
- – Customized Full Automatic A mode
Selection of Detergent and Alcohol purging
- – Short term operation is available in Automatic B mode
- – Advanced material for anti-corrosion
- – Enhanced sensor package
- – Intuitive user control display
Specification
| Leakage Test |
Water type |
| Operating Procedure (time) |
Washing – 10 sec ~9min 50sec |
| Disinfection – 1min~6hr 59min |
| Detergent – 20sec |
| Alcohol – 10sec |
| Program Mode (Automatic) |
- Automatic A mode: Washing – Detergent – Washing – Disinfectant – Washing – Alcohol – Air |
| - Automatic B mode: Disinfectant – Washing – Alcohol – Air |
| - Manual Mode: Leak test/Washing/Disinfectant/Drain/Air/Retank/ Discharge/ Alcohol |
| Tank Capacity |
Detergent Tank : 1.5 Liters |
| Alcohol: 1.5 Liters |
| Disinfectant Tank: 15 Liters |
| Power AC |
AC 220-230VAC, 50/60Hz |
| Dimension |
550 x 570 x 960mm(WxDxH) |
| Weight |
50kg |
