Washer-Disinfectors

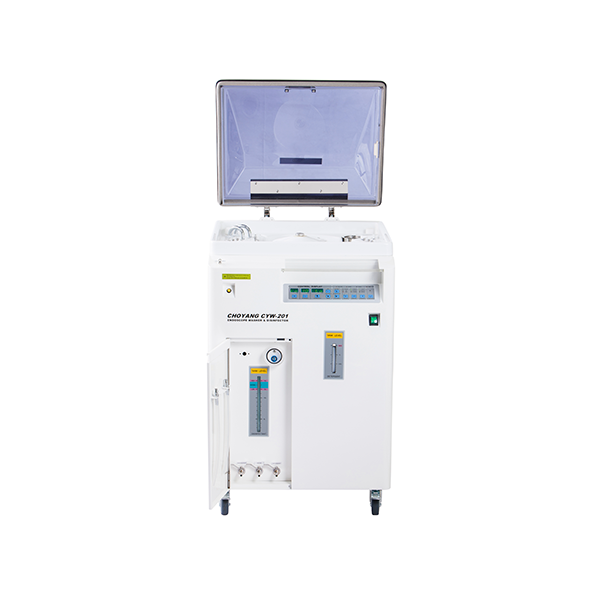

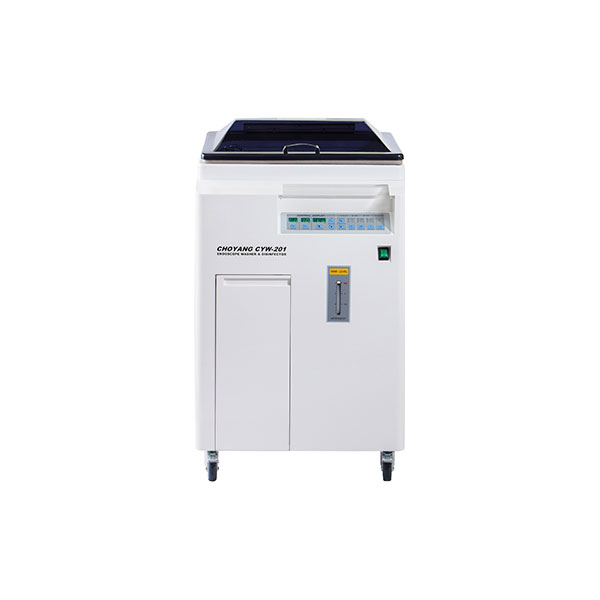

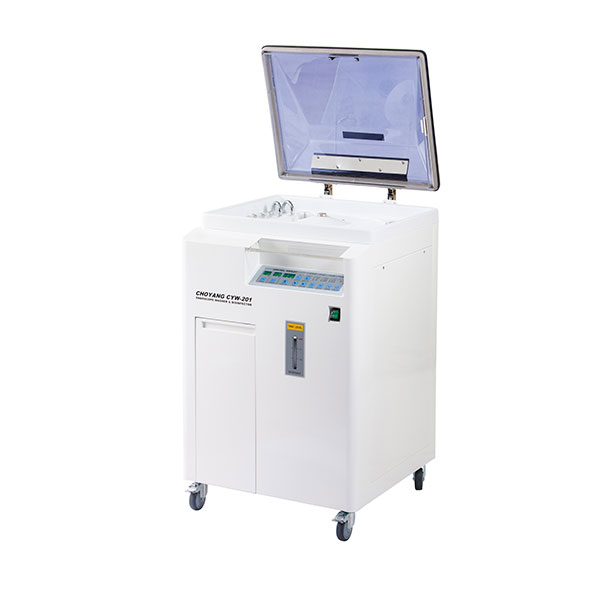

Endoscope washer & Disinfector: CYW-201
Features
- – Dual scope cleaning and disinfection
- – Leakage test
→ Compatible with flexible scopes
- – Perfect washing and disinfection by the disc rotor
- – Multi-channel jetting system rotated in 360°
- – Enhanced sensor package
(basin full sensor, drainage sensor, level(high & low)
Sensor for water tank, low sensor for disinfectant tank)
- – Advanced material for anti-corrosion
- – Visible count for disinfection cycle
Specification
| Leakage Test |
Water type |
| Operating Procedure (time) |
Washing - 10~1100sec, 2min~5min |
| Disinfection – 1~9min, 10~60min, 1~9hr Detergent |
| Defergent(Spray type): 10sec~110sec, 2min~5min |
| Program Mode (Automatic) |
A mode: Washing-detergent-washing-disinfection-washing-air |
| B mode: Washing-detergent-washing-air |
| C mode: Washing-disinfection-washing-air |
| Tank Capacity |
Water Tank: 16 Liters |
| Detergent Tank: 1.5 Liters |
| Disinfectant Tank: 20 Liters |
| Basin Capacity |
14.4 Liters |
| Channel connection |
6 connection ports in a basin (2 Scope) |
| Discharge |
1 outlet (compulsory discharge on rear pannel) |
| 3 outlets (in the front door) |
| Power AC |
AC 220-230VAC, 50/60Hz |
| Dimension |
623 x 643 x 1020mm(WxDxH) |
| Weight |
70kg |
