Features

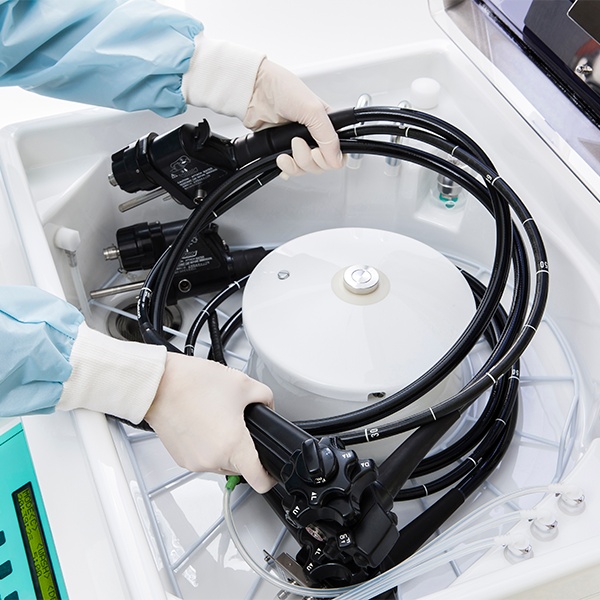

- 1. Dual scope cleaning and disinfection

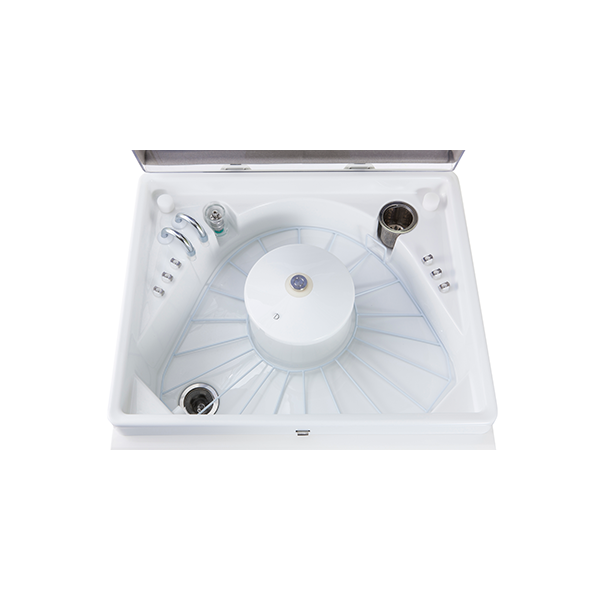

- 2. Leakage test
→ Compatible with flexible scopes - 3. Perfect washing and disinfection by disk rotor
- 4. Multi-channel jetting system rotated in 360°
- 5. Enhanced sensor package
(basin full sensor, drainage sensor, level(high & low) sensor for water tank, low sensor for disinfectant tank) - 6. Advanced materials for anti-corrosion
- 7. Alcohol process for drying channel inside
- 8. Printer system for database
- 9. U.V lamp for water tank
- 10. Indicator for U.V lamp(pre-carbon-micron[0.2])
- 11. Self disinfectant system
- 12. Heating system for disinfectant
- 13. Deodorization system
- 14. Foot switch lid opening system
- 15. Visible count for disinfection cycle
Specification
| Leakage Test | Water type |
| Operating Procedure (time) | Washing - 10~90sec, 2min~5min |
| Disinfection - 1 ~ 10 min, 15 ~ 55 min, 1 ~ 9 hr | |
| Detergent - 10-30 sec, 1min-5min ( Spray type ) | |
| Alcohol - 5 sec | |
| Program Mode (Random Type) |
A mode: Washing-detergent-washing-disinfection-washing-alcohol-air |
| B mode: Washing-detergent-washing-alcohol-air | |
| C mode: Washing-disinfection-washing-alcohol-air | |
| Tank Capacity | Water Tank: 19 Liters |
| Detergent Tank: 1.5 Liters | |
| Disinfectant Tank: 20 Liters | |
| Alcohol Tank: 1.5 Liters | |
| Basin Capacity | 14.4 Liters |
| Channel connection | 6 connection ports in a basin (2 Scope) |
| Discharge | 1 outlet (compulsory discharge on rear pannel) |
| 3 outlets (in the front door – water , disinfectant, detergent) | |
| Power AC | 220-230vac, 50/60Hz |
| Dimension | 623 x 639 x 1050mm(WxDxH) |
| Weight | 84kg |
