Washer-Disinfectors

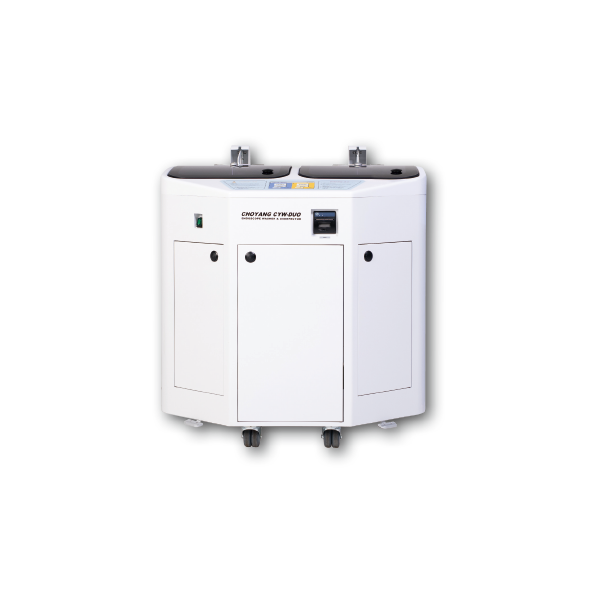

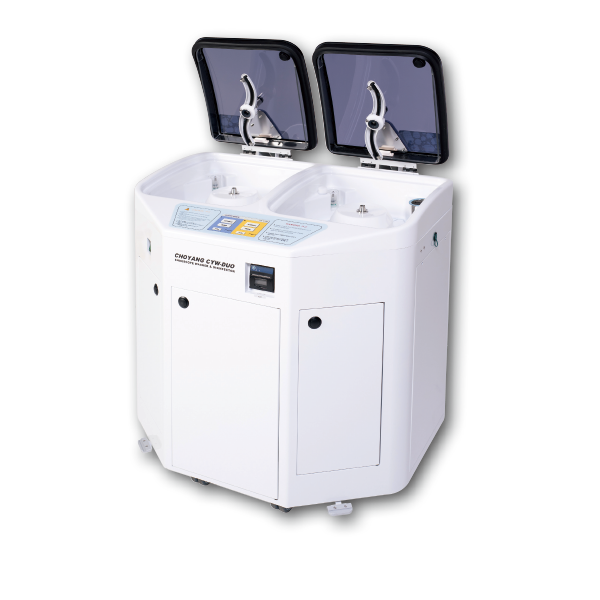

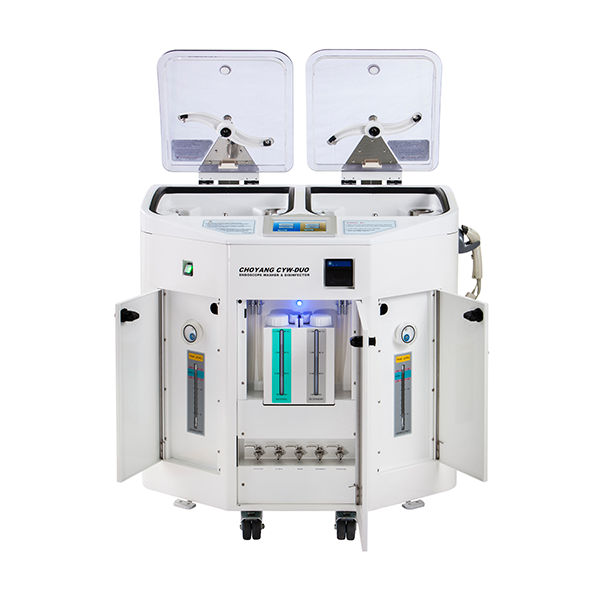

Endoscope washer & Disinfector: CYW-DUO

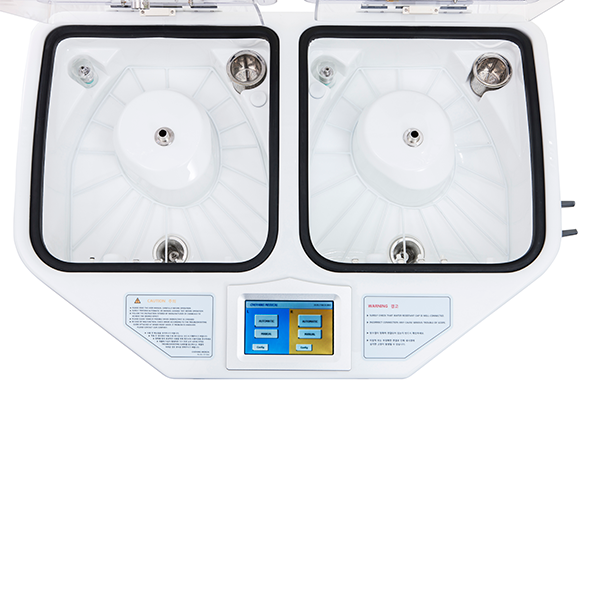

– Dual chambers – two basins
– Easy to use foot switch for hands-free lid operating system

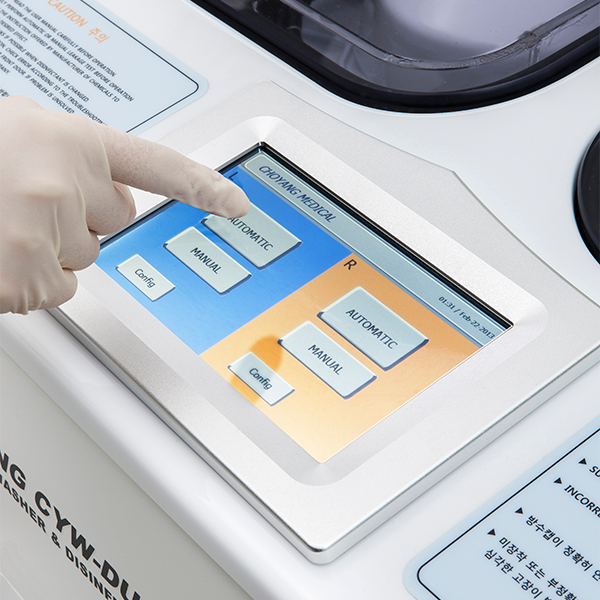

– 7” wide TFT LCD touch screen with independent operating system
– Spray arm located at top cover for dynamic washing

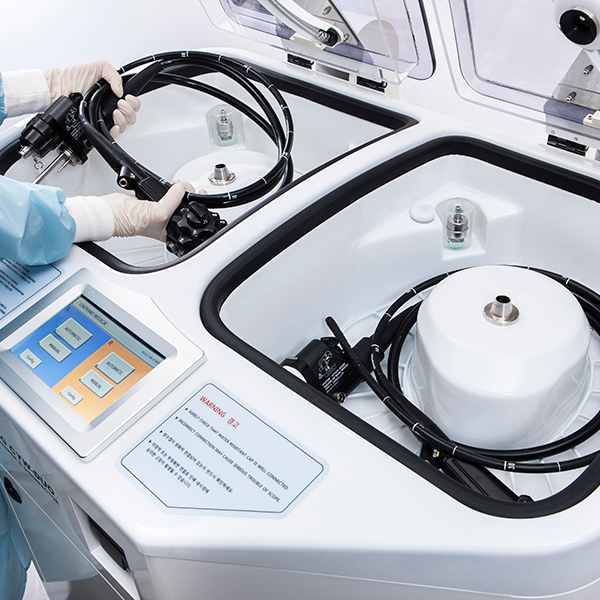

– Full time leakage monitoring of endoscopes
– Continuous channel monitoring of endoscopes
– Barcode reading system (optional)
– Disinfection heating system [Max. 55℃]

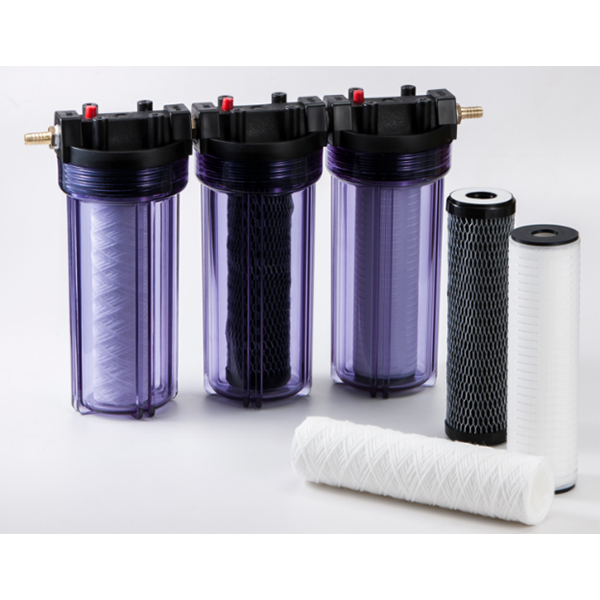

– Advanced external water filtration system with standard bacteria retention micron [0.2] water filter
– Cycle report documentation by dynamic printing system
– Full automatic reprocessing system & each process can be selectable & operated manually
– Self disinfection system
– Indicating system for counting of use for disinfectant
– Indicating system of changing disinfectant by period of date
– UV lamp indicator
– Compatible system for all kind of chemicals
– Filter for disinfectant
– Barcode / Printer system

Leakage Test	Water / Air type
Operating Procedure (time)	Washing: (off), 10~250sec
	Detergent: (off), 10~600sec
	Disinfection: 0sec (off), 1~120min
	Alcohol process: (off), 10~250sec
	Air Dry process : (off), 10~250sec
Program Mode (Random Type)	ex) : Washing-air-detergent-air-washing2-air-disinfection-air-washing3-air-alcohol-air
Program Mode (Random Type)	All processes can be changeable by user's choice and the function(water fill in the basin before & after disinfection) can be added
Tank Capacity	Water Tank: 25 Liters
	Detergent Tank: 1.5 Liters
	Disinfectant Tank: 20 Liters x 2
	Alcohol Tank: 1.5 Liters
Channel connection	4 connection ports in a basin each(one is for leakage port, three is for channel connection port)Discharge
Discharge	2 Outlets(Compulsory discharge on rear pannel)
Discharge	5 Outlets(in front)
Power AC	AC 220 ~ 230VAC, 50/60Hz
Dimension	(W)963mm × (D)797mm × (H)1046mm Lid open 1440(H)mm
Weight	120kg
